Designed to deliver seamless internet connectivity, this router is perfect for ensuring robust performance in large homes.
Key Features:
- Reliable Whole-Home Coverage
- Provides stable connectivity for large spaces with internet speeds up to 100 Mbps.
- High-Speed Dual-Band Wi-Fi
- Offers 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band.
- Advanced Networking Technologies
- Features MU-MIMO, Beamforming, and fast roaming for enhanced performance.
- User-Friendly Setup
- Simple installation process with auto-syncing capabilities for multiple units.
- Convenient Management
- Control your network remotely using the Cudy App for local and cloud access.
The CUDY AC1200 Mesh Wi-Fi Router combines high-speed connectivity, advanced features, and ease of use, making it an excellent choice for modern households seeking uninterrupted internet access.

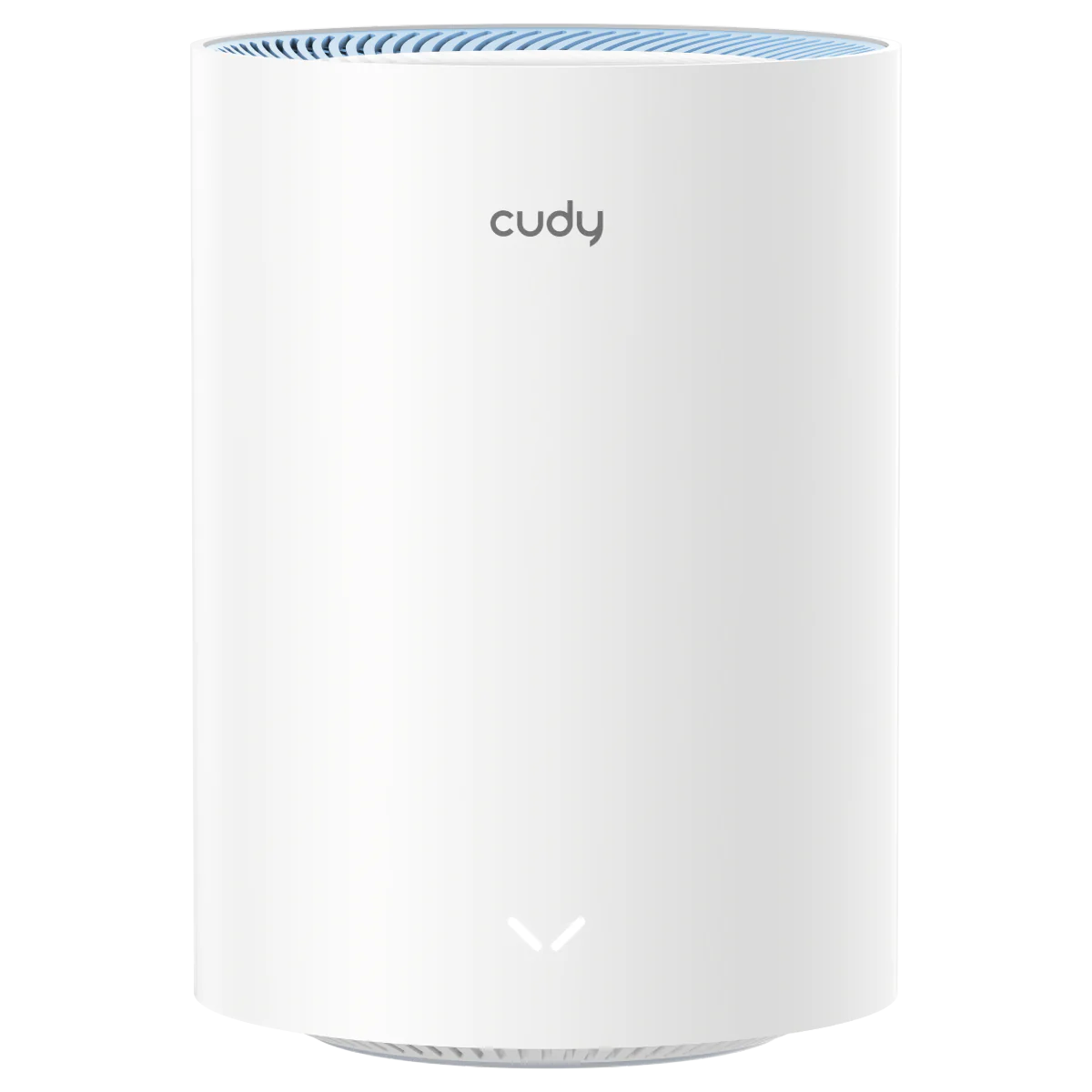

AC1200 Mesh Wi-Fi System
M1200
A mesh WiFi system built to provide a reliable network for large homes, Installation is easy—set up one unit and auto-sync the rest. Suitable for 100 Mbps internet access.
- 4-Stream Dual-Band Wi-Fi 5
- 867 Mbps + 300 Mbps Wi-Fi 1

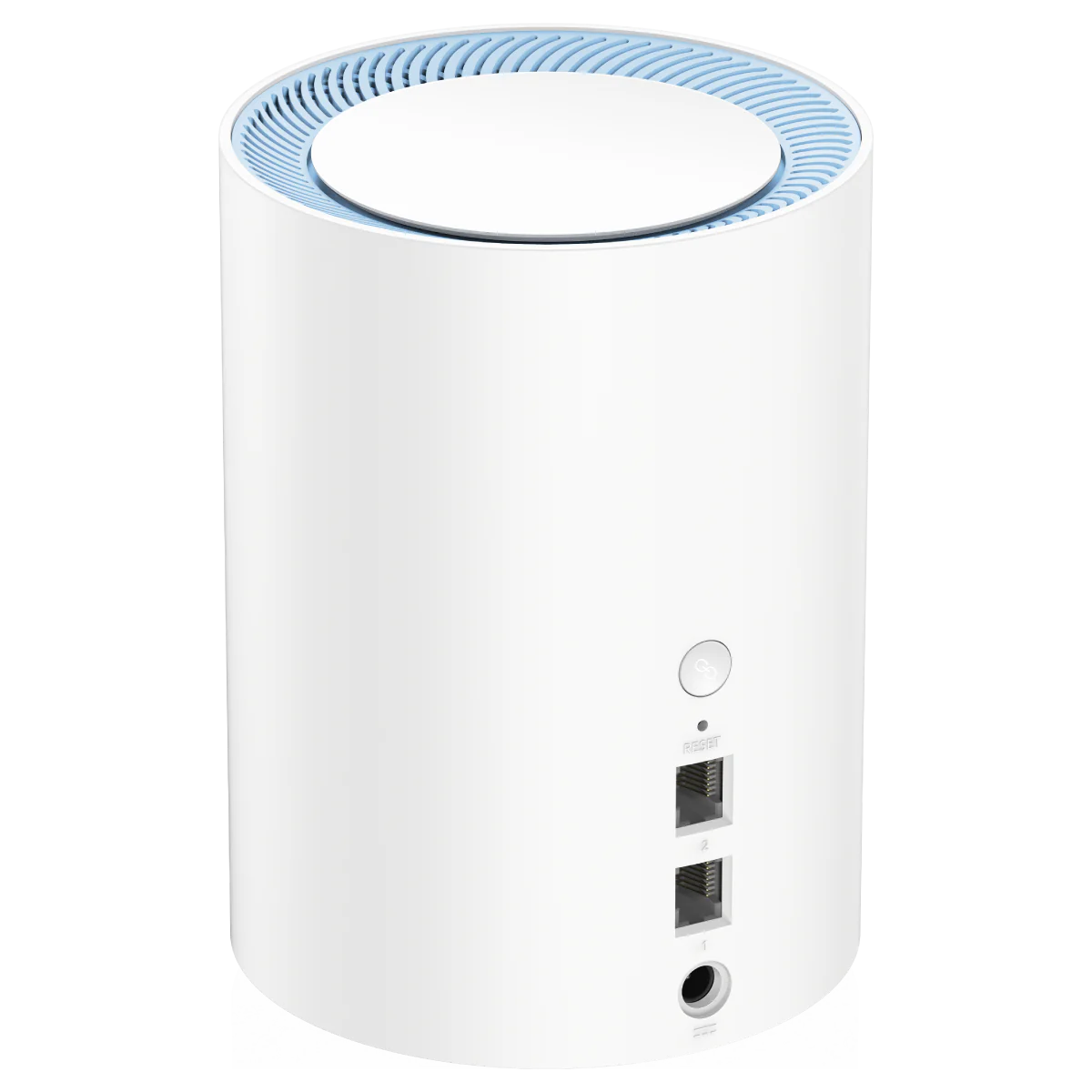

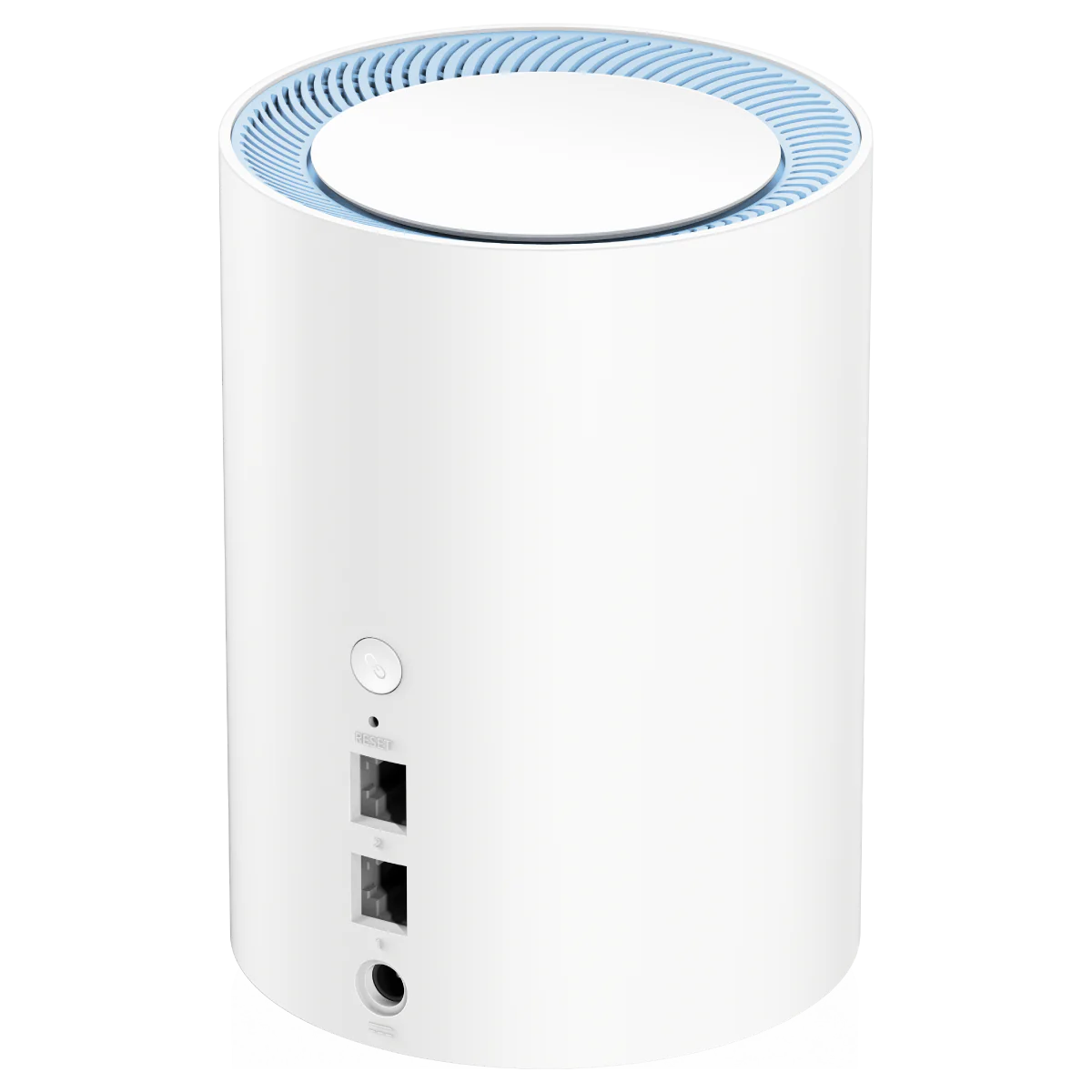

- 2× Fast Ethernet Ports
- Fast Roaming
- MU-MIMO, Beamforming 2
- Cudy Mesh, VPN Server and Client
- Multi-Band Simultaneous Backhaul
- Cudy App, Cloud Control
Cudy App
| Model Version | M1200 1.0 | |
|---|---|---|
| CPU | Chipset | MT7628 |
| CPU Details | 580 MHz Single-Core, MIPS24KEC | |
| Memory/Storage | Flash/ROM | 16 MB (128 Mbit) NOR |
| DDR/RAM | 128 MB (1 Gbit) DDR3 | |
| Wireless | 5 GHz Wi-Fi Speed | 867 Mbps |
| 2.4 GHz Wi-Fi Speed | 300 Mbps | |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| Wi-Fi Antennas | 4× Internal | |
| 5 GHz Antenna Gain Max | 3.75 dBi | |
| 2.4 GHz Antenna Gain Max | 2.35 dBi | |
| Beamforming | True | |
| Range Performance | Max: 170 m (558 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. |
|
| Wall Performance | One wooden walls with thickness < 10 cm (4”) One concrete wall with thickness < 20 cm (7”) |
|
| Multi-Pack Indoor Coverage | 2 Pack: 300 m² (3200 sq ft) 3 Pack: 400 m² (4500 sq ft) Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of two obstacles to each room. |
|
| Interfaces | 10/100 Mbps RJ45 Ports | 2 |
| Ethernet Notes | Port 1 as default WAN port, both as LAN ports on Mesh satellite units | |
| LED | System | |
| Physical Buttons |
|
|
| Power Input | DC Jack | |
| Power | Power Methods | DC |
| DC | 12V 1A | |
| Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC |
|
| Reliability | Environment |
|
| Certifications | FCC, CE | |
| Mechanical | Installation | Desktop |
| Dimension | Φ110×154.5 mm Φ4.33×6.08 inches |
|
| Product Weight |
|
|
| Package Content |
|
|
| Ordering Information | Retail Package Weight |
|
| Retail Package Dimension |
|
|
| Units per Carton |
|
|
| Carton Dimension |
|
|
| Carton Gross Weight |
|
|
| Carton Net Weight |
|
|
| Model Version | M1200 1.0 | |
|---|---|---|
| Wireless | Wi-Fi Standards | Wi-Fi 5 |
| Max Wi-Fi Modulation | 256-QAM | |
| Wi-Fi Efficiency | MU-MIMO | |
| Wi-Fi Efficiency Note | MU-MIMO available on 5 GHz | |
| Max Capacity | 128 | |
| Recommended Client Upper Limit | 50 | |
| Max Wi-Fi Channel Width | 80 MHz | |
| Wi-Fi Security | WPA/WPA2/WPA3 | |
| Guest Network | 2.4 GHz, 5 GHz | |
| WPS | True | |
| General | Operation Modes |
|
| Mesh | Cudy Mesh | |
| Mesh Backhaul |
|
|
| Multi-Band Backhaul | true | |
| WAN Mode |
|
|
| Internet Failover Sequence |
|
|
| Network | QoS | Per-User Rate Limiting |
| DHCP |
|
|
| IP Versions | IPv4/IPv6 | |
| IPv6 Protocols |
|
|
| IPTV/VLAN |
|
|
| TTL Customization |
|
|
| IGMP |
|
|
| Forwarding |
|
|
| Firewall |
|
|
| Application Layer Gateway |
|
|
| Utilities | VPN Server |
|
| VPN Client |
|
|
| VPN Performance |
|
|
| DNS Options |
|
|
| DNS over TLS Providers |
|
|
| Wake on LAN | True | |
| Online Detection | True | |
| Management | All Devices Management |
|
| Per-Devices Management |
|
|
| Content Management |
|
|
| System | LED Control | ture |
| Local Control Method |
|
|
| Remote Control Method |
|
|
| Firmware Upgrade |
|
|
| Reliability |
|
|
| Diagnostic Tools |
|
|
| Languages |
|
|
| Dashboard | Panel |
|
| Charts |
|
|
- Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
- Use of MU-MIMO requires the client devices to also support MU-MIMO.
