| WIRELESS | |
|---|---|
| Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX5400 5 GHz: 4804 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 3 Bedroom Houses
6× Fixed High-Performance Antennas Beamforming High-Power FEM 4T4R |
| WiFi Capacity | High
Dual-Band 4×4 MU-MIMO OFDMA Airtime Fairness DFS 6 Streams |
| Working Modes | Router Mode Access Point Mode |
| SECURITY | |
|---|---|
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeShield Security Real-Time IoT Protection |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN PPTP |
| VPN Client | • Open VPN Client • PPTP VPN Client • L2TP VPN Client |
| WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
| HARDWARE | |
|---|---|
| Processor | 1.5 GHz Triple-Core CPU |
| Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports Static Link Aggregation (LAG) available with 2× LAN ports |
| USB Support | 1× USB 3.0 Port
Supported Partition Formats: Supported Functions: |
| Buttons | Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button |
| Power | 12 V ⎓ 2.5 A |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Service Kits | HomeShield Learn More> |
| OneMeshâ„¢ | OneMeshâ„¢ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMeshâ„¢ helps you create a more flexible network that covers your entire home with TP-Link OneMeshâ„¢ products. Learn More> All OneMesh Products> |
| Parental Controls | HomeShield Parental Controls
Custom Profiles |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP Virtual Server |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management | Tether App Webpage |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE: <20dBm{2.4GHz} <23dBm{5.15GHz~5.35GHz} <30dBm{5.47GHz~5.725GHz} FCC: <24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz } <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz } |
| WiFi Reception Sensitivity | 2.4GHz: 11ac VHT20 MCS0:-94.5dBm 11ac VHT20 MCS8:-72.5dBm 11ac VHT40 MCS0:-92.5dBm 11ac VHT40 MCS9:-69.5dBm 11ax HE20 MCS0:-95dBm 11ax HE20 MCS11:-64.5dBm 11ax HE40 MCS0:-92.5dBm 11ax HE40 MCS11:-62dBm 5GHz: 11ac VHT20 MCS0:-97dBm 11ac VHT20 MCS8:-74dBm 11ac VHT40 MCS0:-95dBm 11ac VHT40 MCS9:-70dBm 11ac VHT80 MCS0:-91.5dBm 11ac VHT80 MCS9:-66dBm 11ac VHT160 MCS0:-86dBm 11ac VHT160 MCS9:-61dBm 11ax HE20 MCS0:-95dBm 11ax HE20 MCS11:-64dBm 11ax HE40 MCS0:-91.5dBm 11ax HE40 MCS11:-62dBm 11ax HE80 MCS0:-88dBm 11ax HE80 MCS11:-58dBm 11ax HE160 MCS0:-85.5dBm 11ax HE160 MCS11:-55dBm |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 10.7 × 5.8 × 1.9 in (272.5 × 147.2 × 49.2 mm) |
NEXT LEVEL PERFORMANCE FOR EVERYONE.
AX5400 Dual-Band 6-Stream
Gigabit Wi-Fi 6 Router
-
Fully Featured
Wi-Fi 6 -
Warp Speeds up to 5400 Mbps
-
Extensive Wi-Fi Coverage
-
Up to 4x More Capacity
-
HomeShield Security
Wi-Fi 6 Upgrades Everything
The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
Warp Speed for
Smooth 8K Streaming
Drastically improved speeds enable smoother streaming, faster downloading, and gaming, all at the same time. Need to go faster?
Hop on 5 GHz with full speed-boosting features to stream multiple 8K videos without lagging.
- 6 Stream Wi-Fi RouterÂ
 2033 Mbps - Archer AX73 Â
 5378 Mbps - 164% Faster
-
HT160
Doubling
bandwidth -
1024-QAM
25%
faster speeds -
6-Stream
Simultaneous
transmission
Extensive Wi-Fi Coverage with Advanced Technology
Enjoy stable Wi-Fi connections in all rooms, even in the kitchen and bedroom. High-Power FEM, 6× antennas, beamforming, and 4T4R structures combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices.
-
Beamforming -
4T4R2T2R4T4R
Connect
More Devices
Easily handle dozens of devices streaming and gaming at the same time — OFDMA and MU-MIMO combine to future-proof your home network by providing greater capacity to connect more devices.
OFDMA
Enables different devices to share one transmission stream, increasing efficiency.‡
MU-MIMO
Transmits data to different devices simultaneously using multiple streams.**
Designed to Be Cool
The slant rectangle atop of the scaled armor design provides a contemporary aesthetic. The vent design takes up 167 cm² (25 in²) of its top surface for improved heat dissipation, unleashing the whole machine’s full power.
TP-Link HomeShield:
Advanced Security for Your Network and Clients
HomeShield protects all connected clients against DDoS, malicious sites, and port intrusion, delivering a safe network environment for your data and privacy.*
-
Enhanced IoT Security
HomeShield identifies IoT devices, including cameras and voice assistants, to block all potential security holes and secure your privacy.
-
DDoS Attack Prevention
HomeShield will record abnormal incoming traffic, and the device will automatically block requests from enlisted IPs.
-
Robust Parental Controls
Manage online time and block inappropriate content to keep your family safe online.
-
Leading Security by Avira®
Avira, an award-winning tech company, relied on by 500 million users, powers HomeShield and continually updates it, ensuring your network stays worry-free.
-
Home Network
Scanner -
Comprehensive
Reports -
New Connected
Devices Notification -
Quality
of Service
TP-Link OneMeshâ„¢:
Flexibly Create Whole Home WiFi
Want to build a whole-home Wi-Fi? Archer AX73 supports OneMesh to form a fast and easy whole-home network, that covers your home, preventing drops and lag when moving between signals.
-
Multi-Band BackhaulSingle-Band BackhaulStrong Mesh with Multi-Band Backhaul -
0.13sRoaming 5 GHzUltra-Fast Smart Roaming -
Unified Management
Easy Setup and Use
Whether you prefer the intuitive Tether App or the powerful web interface, you can set up your Archer AX73Â in minutes. The Tether App allows you to manage network settings from any Android or iOS device.

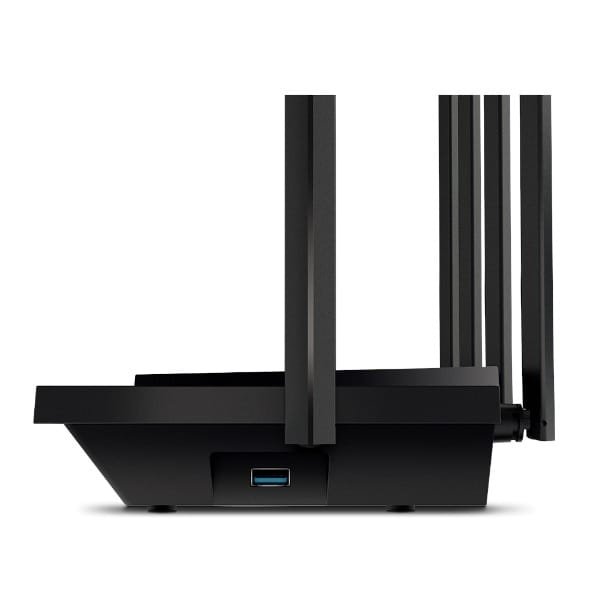

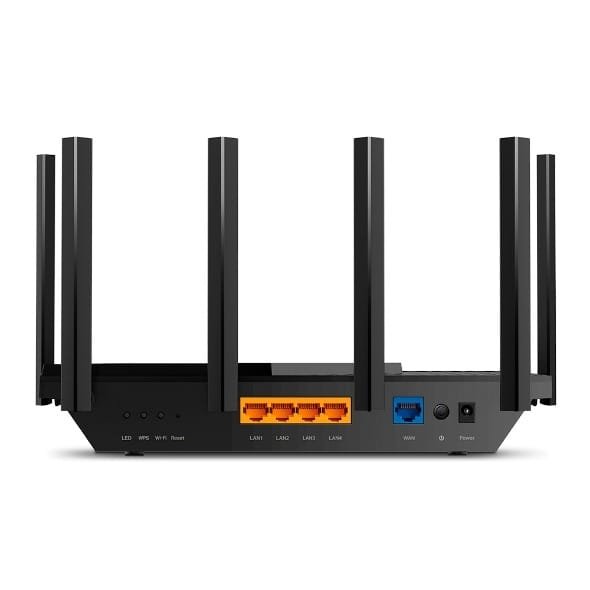

Dimension and Ports
LAN Ports
Press Release: Archer AX73—The Top Structure and Full Bandwidth Build for an Ultra-Fast 5.4 Gbps WiFi Network
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 6 (802.11ax), and other features including OFDMA, 1024-QAM, MU-MIMO or HE160 require clients to also support the corresponding features.160 MHz bandwidth may be unavailable on the 5 GHz band in some regions/countries due to regulatory restrictions.
*HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information.
***This router may not support all the mandatory features as ratified in Draft 3.0 of IEEE 802.11ax specification.
****Further software upgrades for feature availability may be required.
Actual network speed may be limited by the rate of the product’s Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
